Precision jigs and fixtures for machining, assembly and inspection, designed and built in-house for accurate, repeatable location of your component.
A good jig or fixture holds the component in the same position every time, so every part comes out the same. We design and manufacture fixtures to suit your component drawing and process, from simple locating plates with pins and bushes to pneumatic clamping fixtures and inspection fixtures.

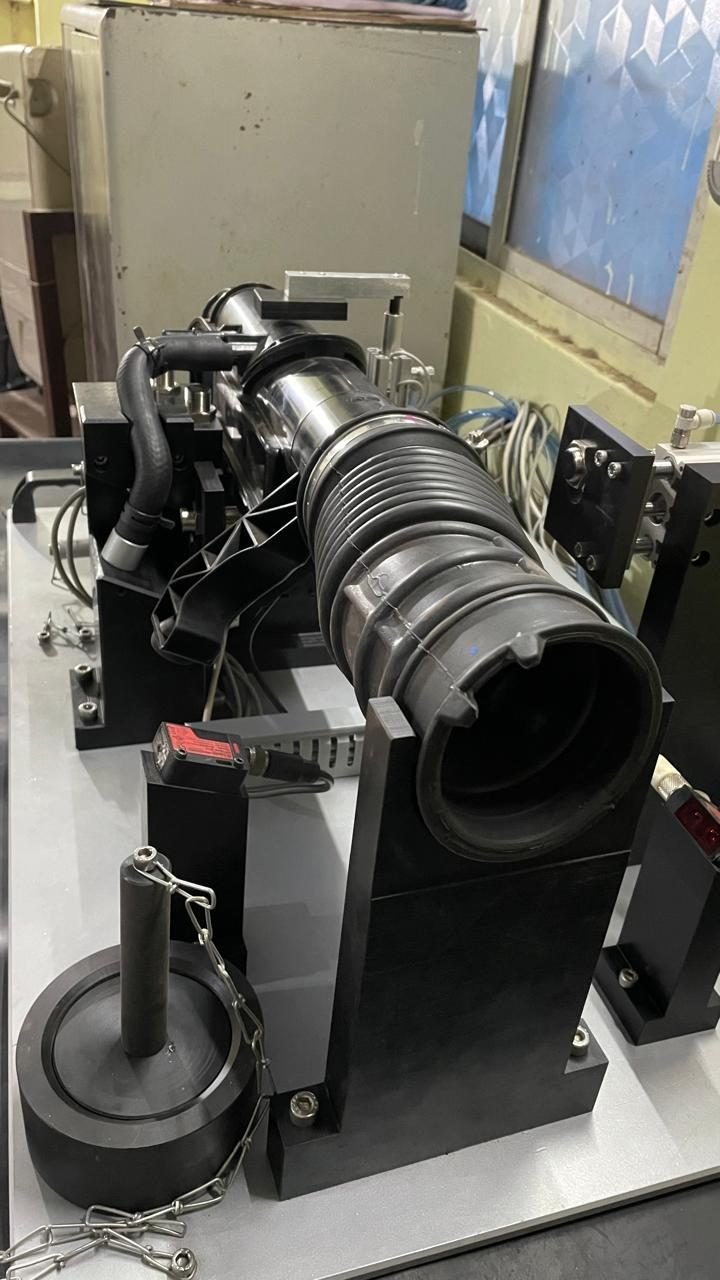

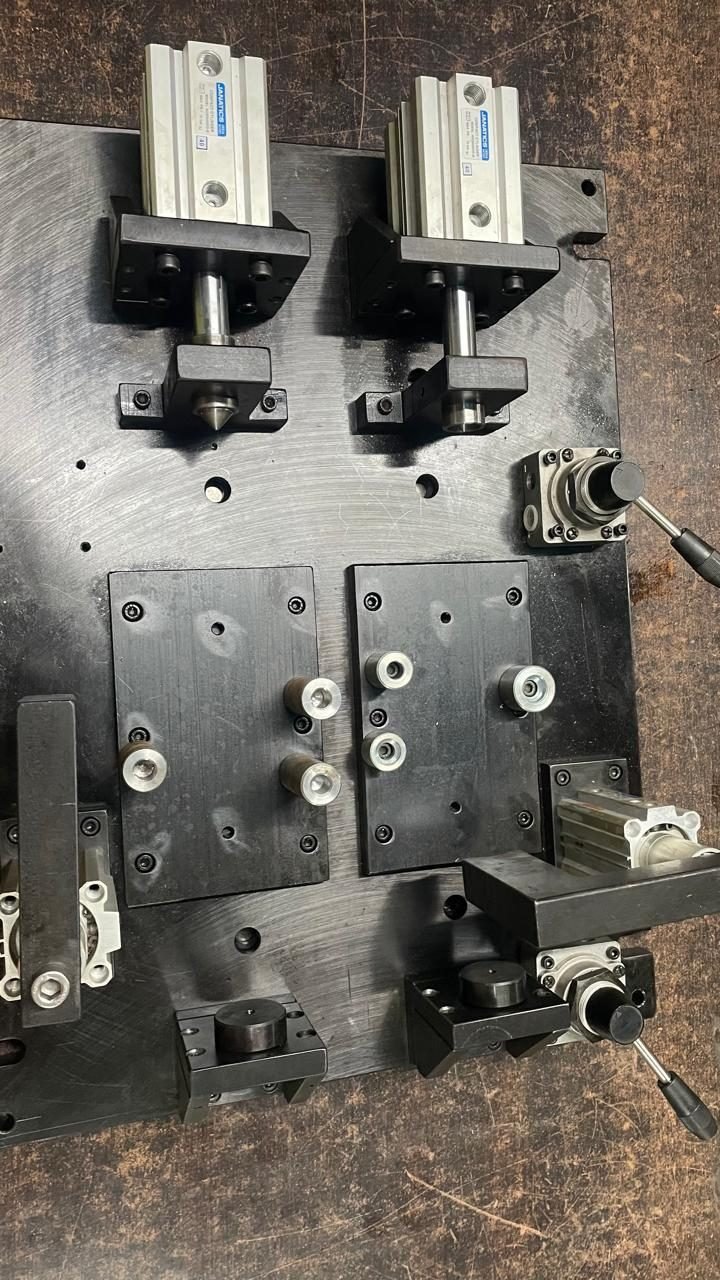

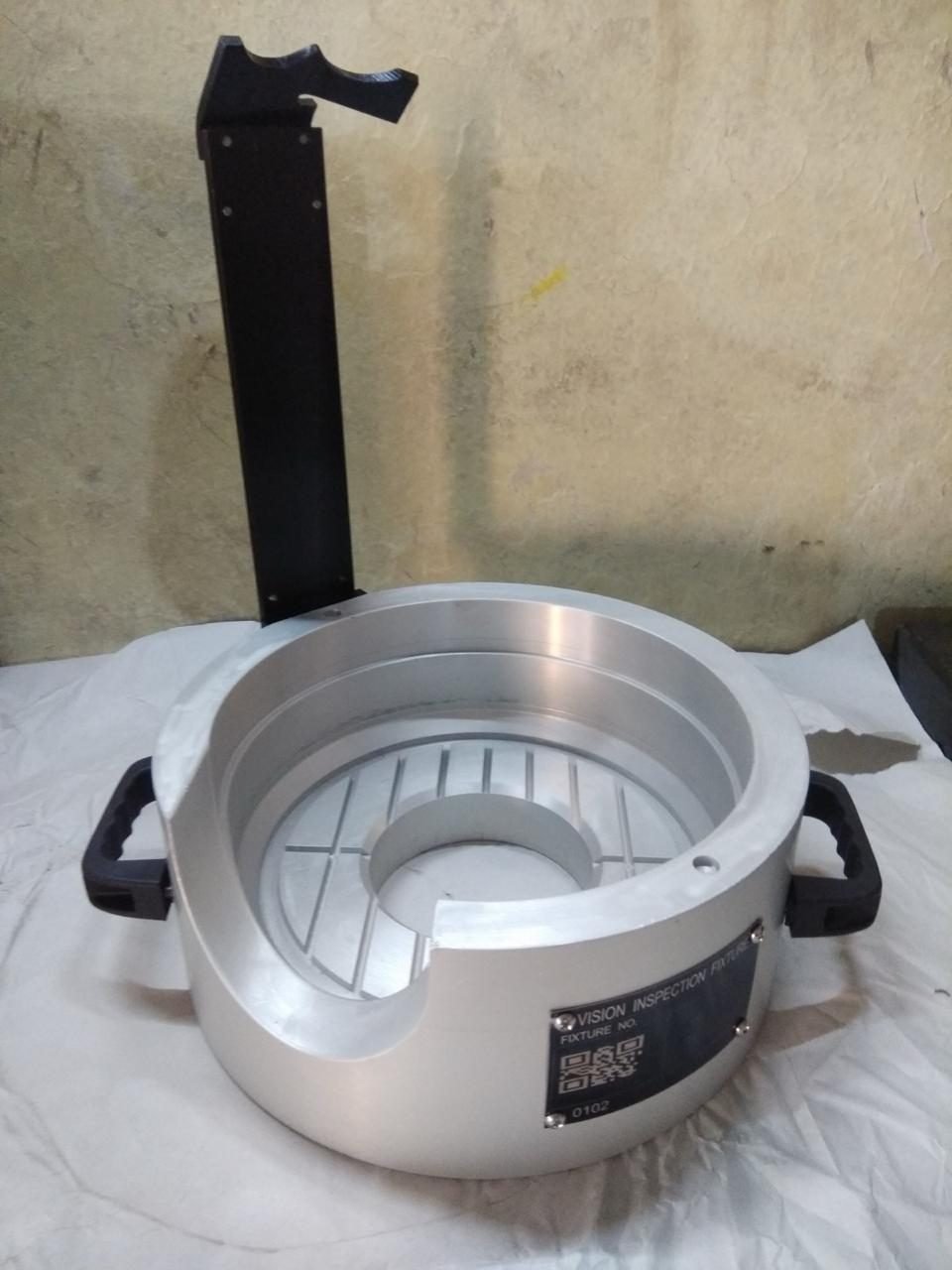

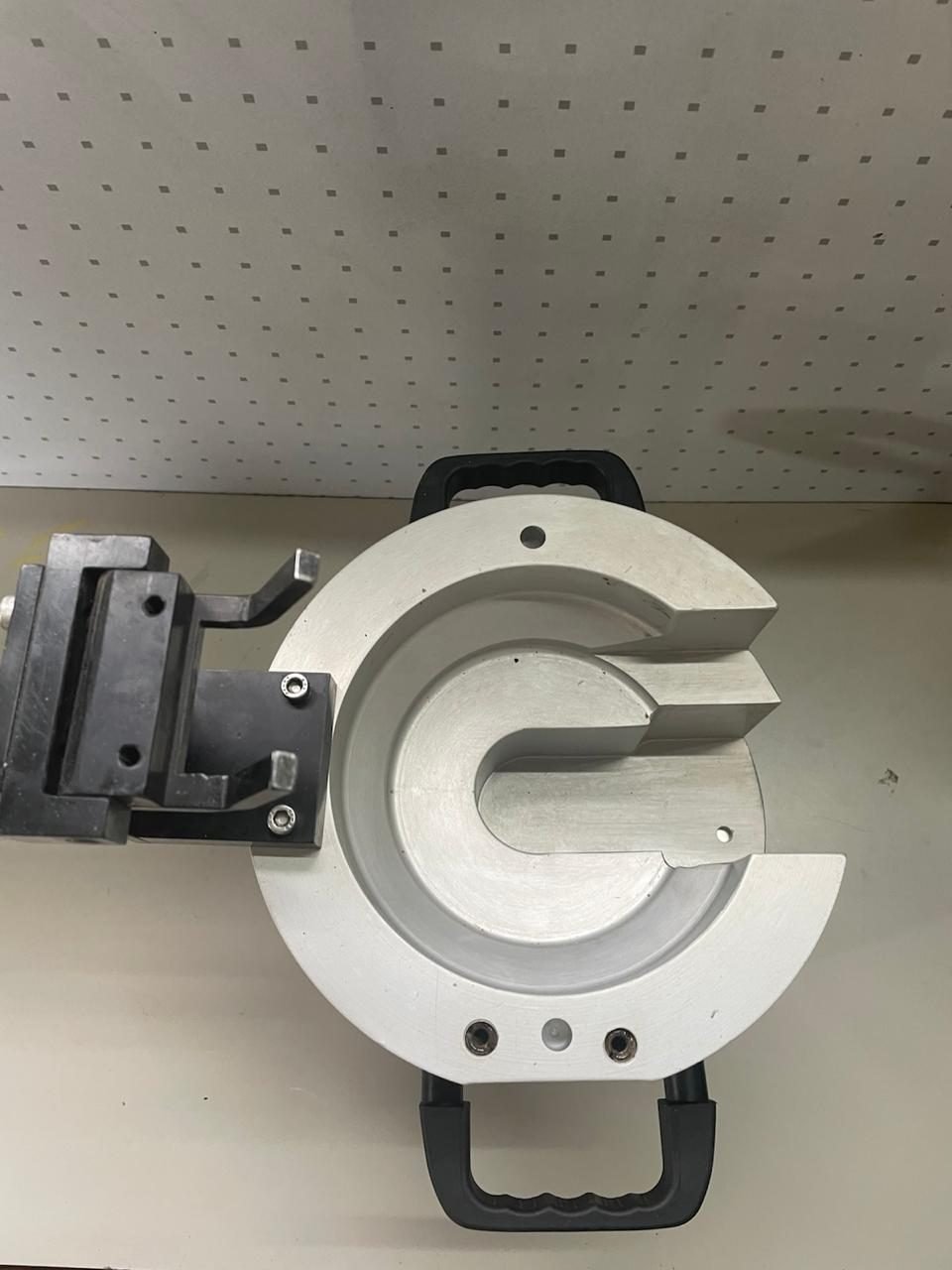

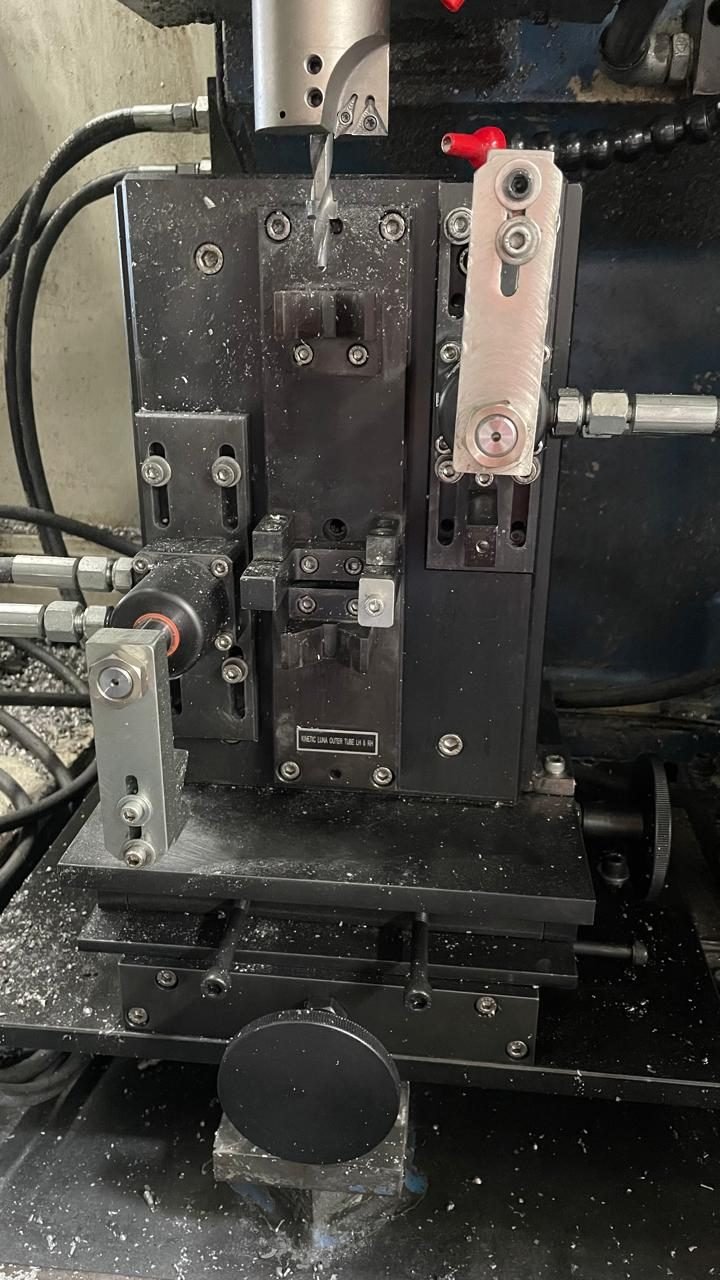

The fixtures shown include a pneumatic clamping plate with cylinders and locating blocks, aluminium fixtures with carry handles and identification plates, a fixture set up on a machine, and a fixture holding a corrugated hose component. As the design set-up and tool room are in the same premises, changes and modifications are handled quickly.
| Product Type | Jigs and fixtures |
|---|---|
| Types | Machining, assembly, inspection and pneumatic clamping fixtures |
| Locating Elements | Pins, bushes and blocks |
| Clamping | Manual or pneumatic, as required |
| Material | As per design: mild steel, tool steel, SS, aluminium, non-ferrous |
| Made To | Customer component drawing |
| Manufactured At | In-house, Pirangut, Pune |
| Quality Check | Inspected with quality instruments before dispatch |
Every part and machine is made to customer requirement and drawing. Send us your drawing, sample or requirement for a quotation.

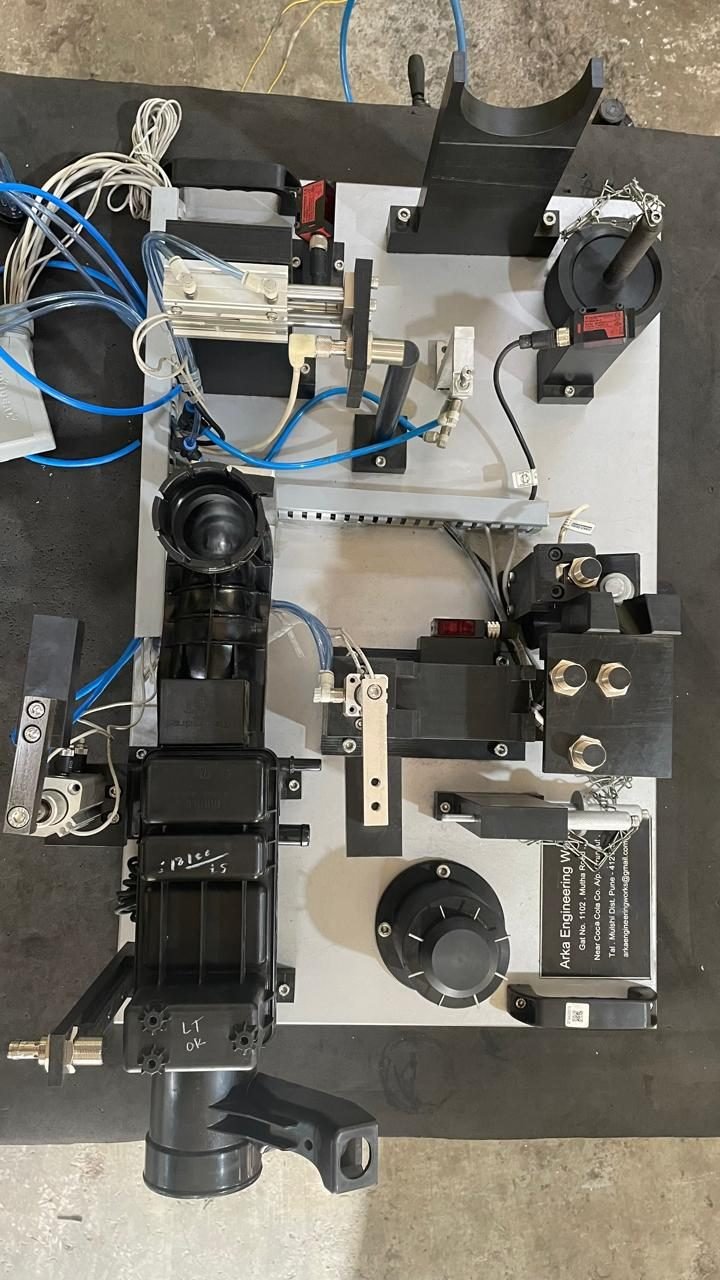

Pneumatic clamping fixture at work. Tap the video to pause, use the speaker button for sound.
We study your component drawing and process, then design the locating and clamping scheme in our design set-up.
Machined and assembled in our own tool room, in the same premises.
Tried with your component and corrected quickly if any adjustment is needed.
Share your drawing or requirement and we will get back with a quick solution.
